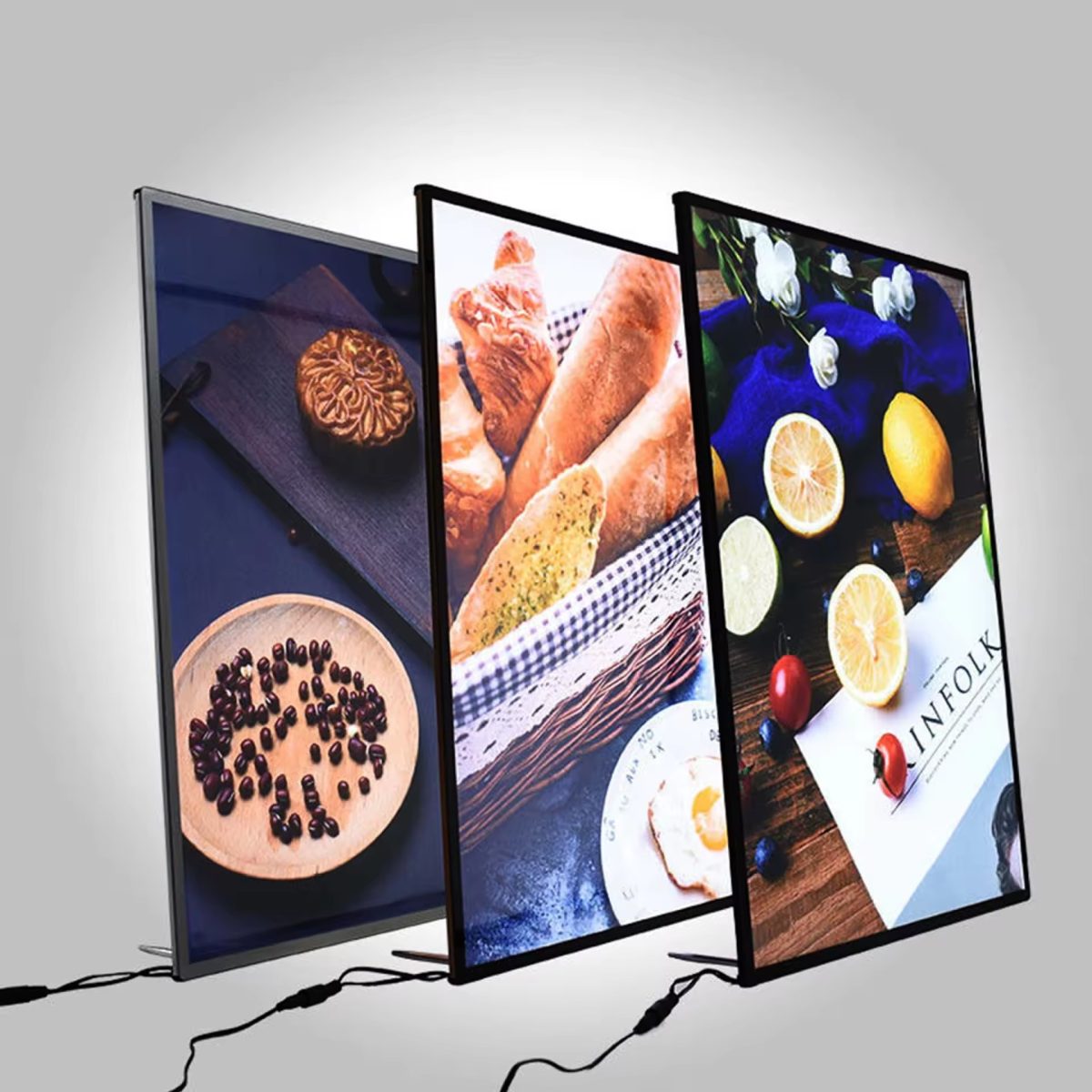

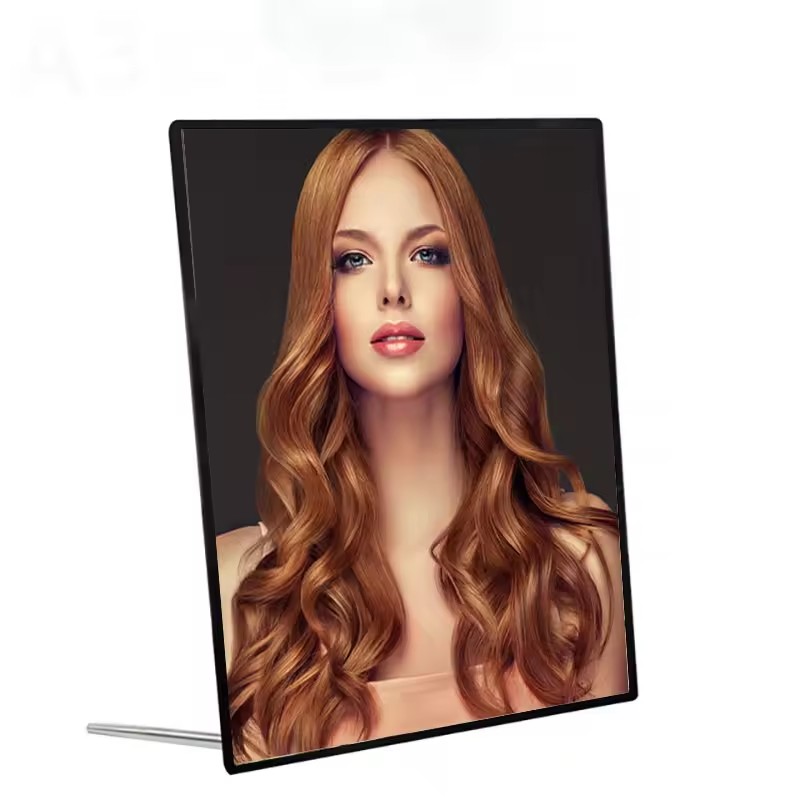

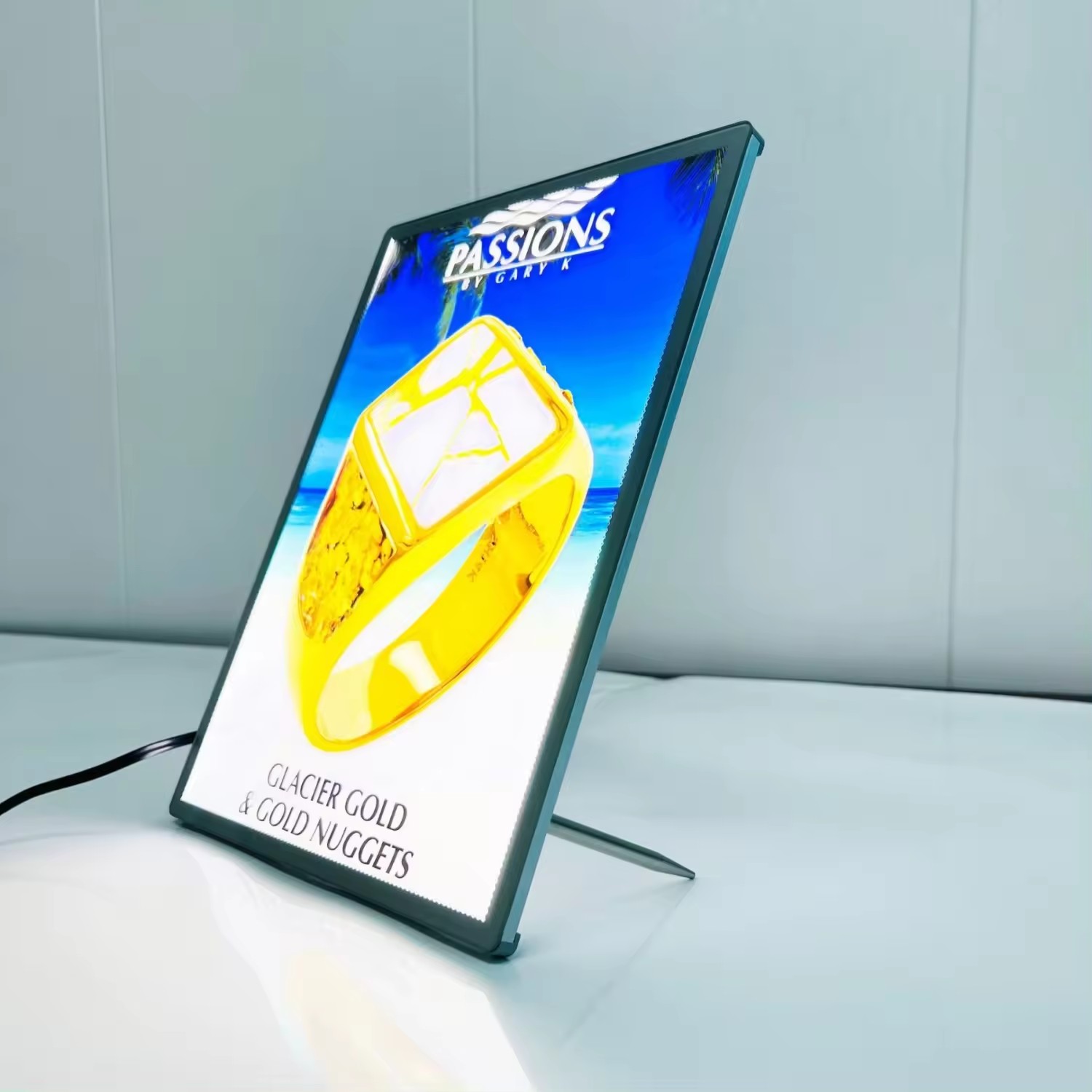

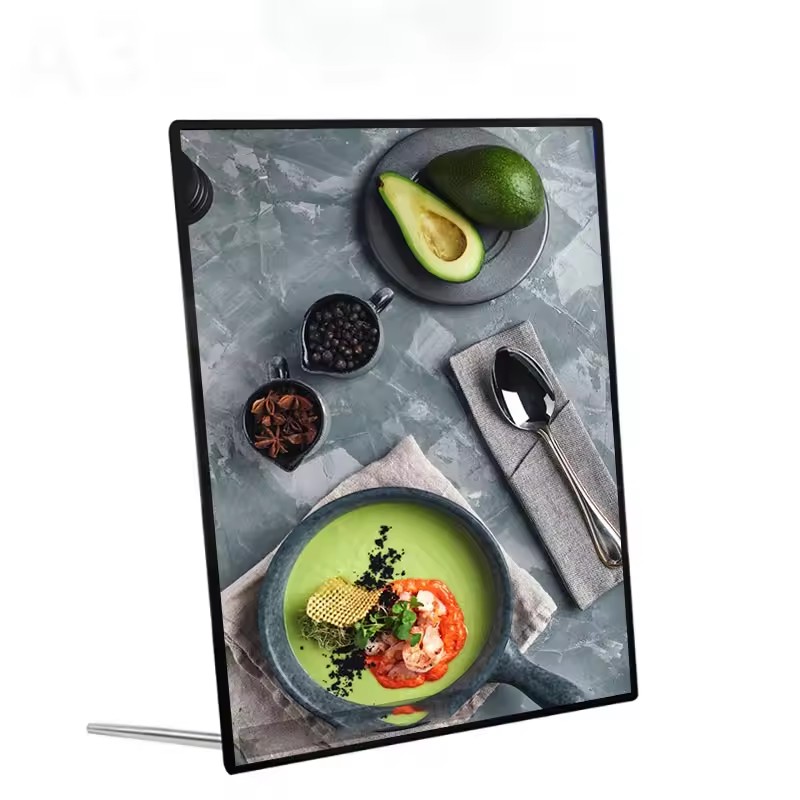

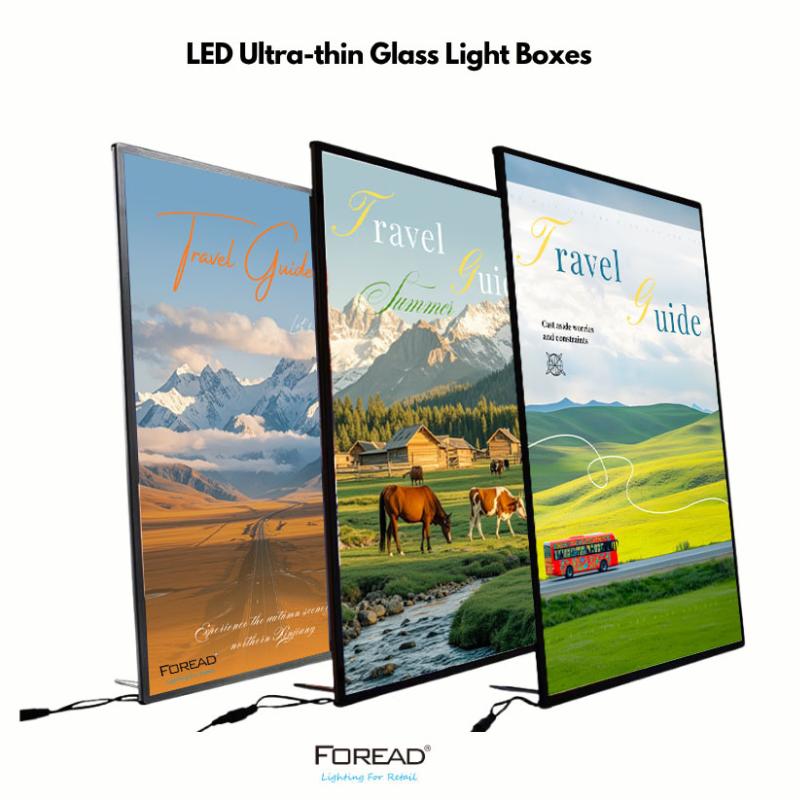

LED Ultra-thin Glass Light Boxes | Bar table

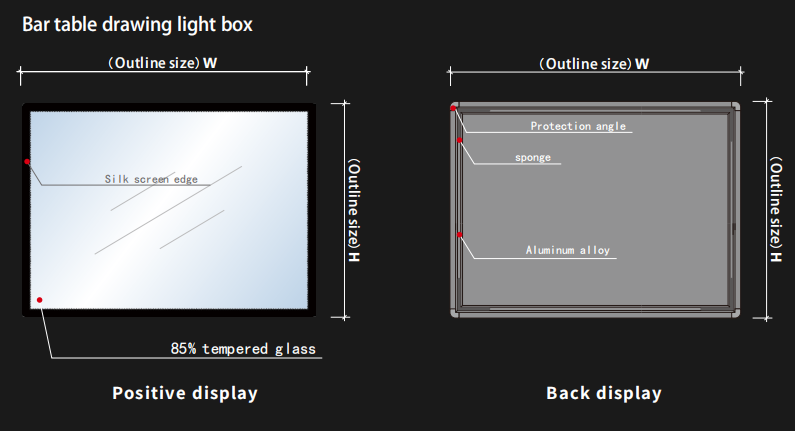

Product Parameters

▸

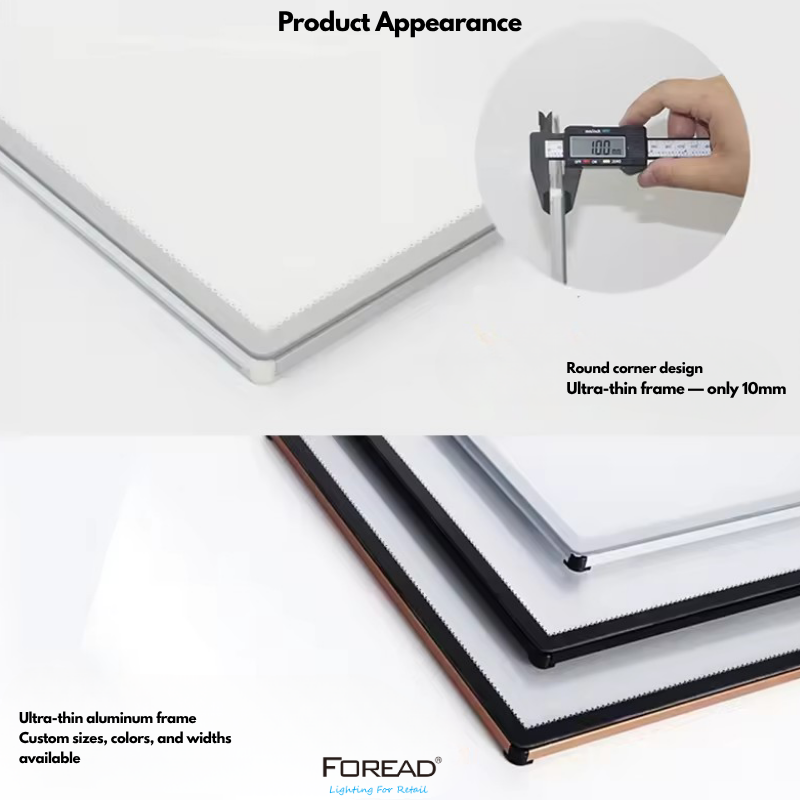

Aluminum alloy frame

▸

85% tempered glass panel

▸

4014 high-efficiency LED light

▸

Light diffusing material

▸

Optical-grade light guide plate

▸

225PET high-reflective film

CONTACT

Share This Items :

Product Features

▸

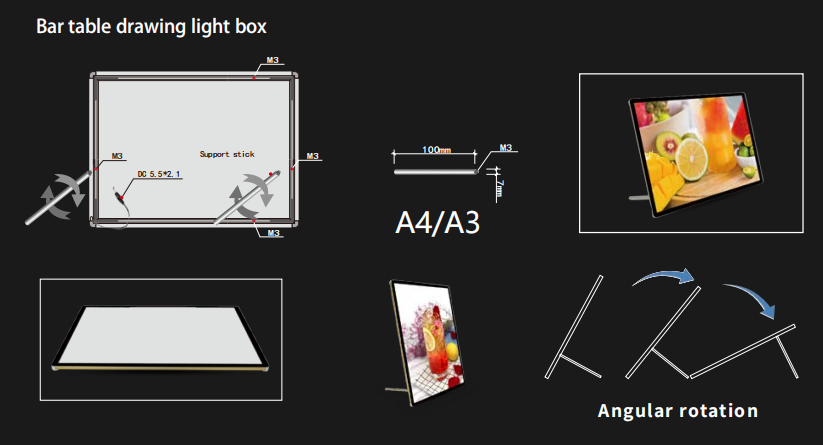

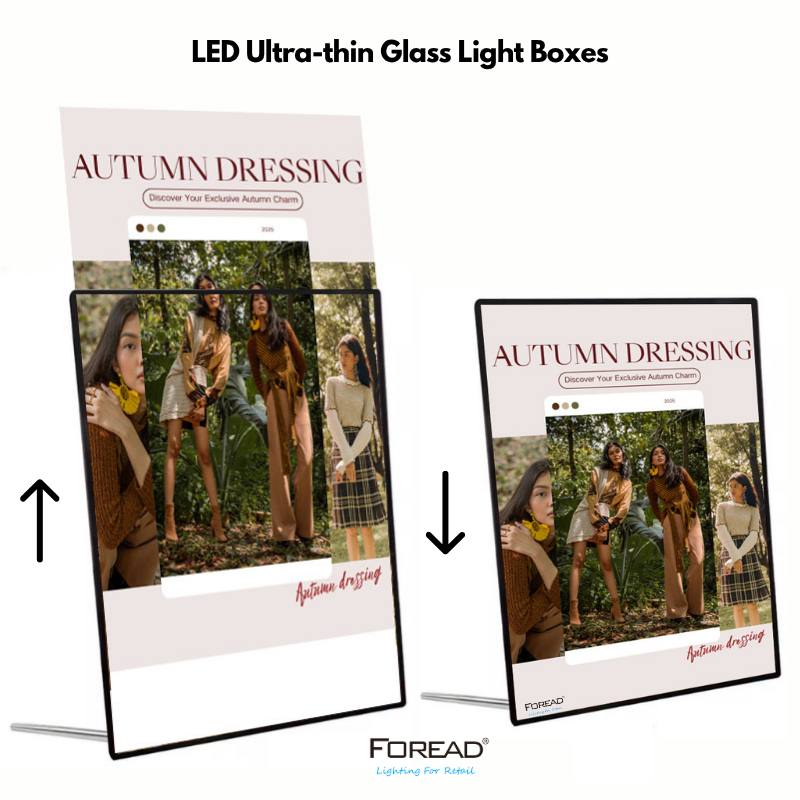

Slide-in design for quick and easy graphic replacement

▸

Uniform illumination with advanced light guide plate technology

▸

Reflective film on back improves light efficiency and reduces energy consumption

▸

Tempered glass plate provides durable protection for the graphic

▸

Ideal for retail displays, menu boards, and advertising signage

Specifications

▸

Material: PMMA / Glass | Light Color: White | Glass Thickness: 2.0mm

▸

Luminous Efficacy: >80 lm/W | CRI: >80 | Color Temp: 2700K | 6000K | 8500K

▸

Voltage: DC 12V/24V | Power: Customizable

▸

Profile Color: Black/White/Grey (Customizable)

▸

Light Guide Plate: Optical grade MMA

▸

Operating Temp: -20°C to +50°C | Service Life: 25,000h / 2 years

▸

Max Size: Customizable

Applications

▸

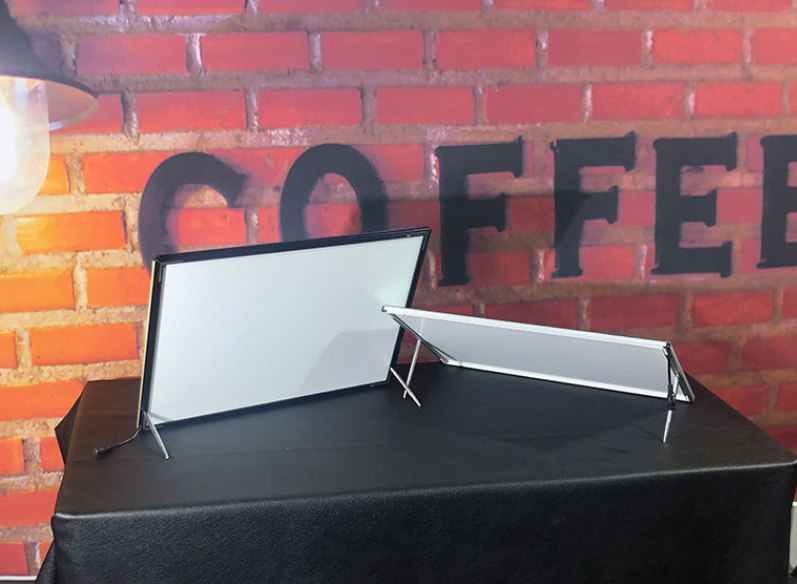

Shopping malls, restaurants, hotels, nightclubs, KTVs, retail counters, bakery, and advertising displays

Technical Data

Product name	Product specifications	Picture size	Thickness of light box	colour	power	Adapter
LED Ultra-thin Glass Light Boxes	A4 (225*304mm)	210*297mm	9mm	Black / Silver	8W	12V-1A
	A3 (311*427mm)	297*420mm	9mm	Black / Silver	9.5w	12V-1A
	A2 (435*600mm)	420*594mm	9mm	Black / Silver	13.5w	12V-1.5A
	A1 (605*850mm)	594*841mm	11mm	Black / Silver	25.8w	24V-1.5A
	500*700mm	485*693mm	9mm	Black / Silver	15.8w	24V-1.5A
	600*900mm	589*895mm	11mm	Black / Silver	27w	24V-1.5A
	600*1200mm	589*1195mm	11mm	Black / Silver	38.4w	24V-2A
	750*1200mm	739*1195mm	11mm	Black / Silver	38.4w	24V-2A
