LED FLEX STRIP |LED 5050 &RGB Strip

Product Detail

Product Features | 5050 RGB LED Strip

▸

High-quality 5050 RGB chips, bright, vivid pure color output

▸

Full RGB color shift, gradient, flash and static lighting modes available

▸

Safe 24V low voltage, low heat, flicker-free stable long-term operation

▸

Flexible cuttable FPC, fits irregular installation surfaces

▸

IP20 indoor bare PCB and IP67 waterproof two options

▸

120° wide beam angle, even light without dark areas for decoration

CONTACT

Share This Items :

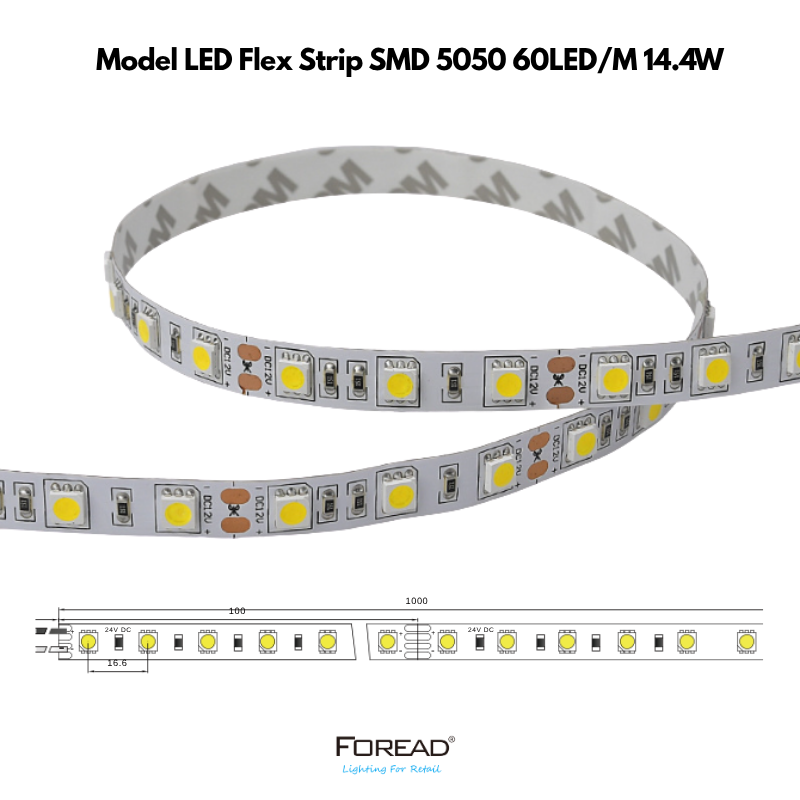

Technical Data | Model LED Flex Strip SMD 5050 60LED/M 14.4W(1 meter)

Model No.	Wavelength / Color Temp (K)	Number of LEDs	Voltage (V DC)	Power (W)	Current (A)	Radiance Angle(°)	CRI	Lum. Flux (lm)	Operation Temperature	Protection level
5050UWx-60-24VW	2700-6500K	60	24	14.4	0.6	120	RA>80	1400	-30~+60℃	IP67
5050UWx-60-24VF	2700-6500K	60	24	14.4	0.6	120	RA>80	1400	-30~+60℃	IP20

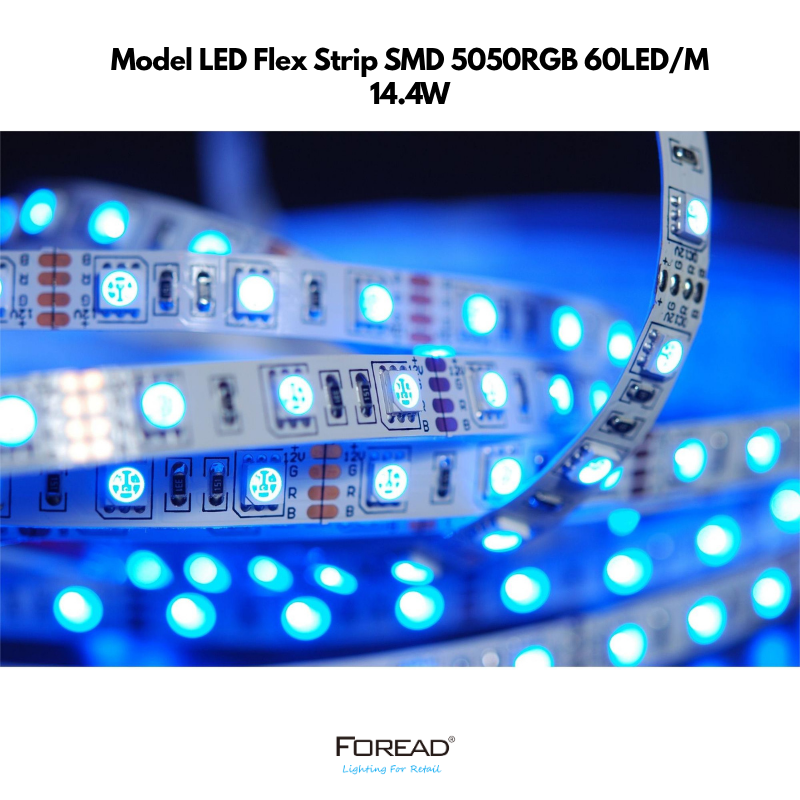

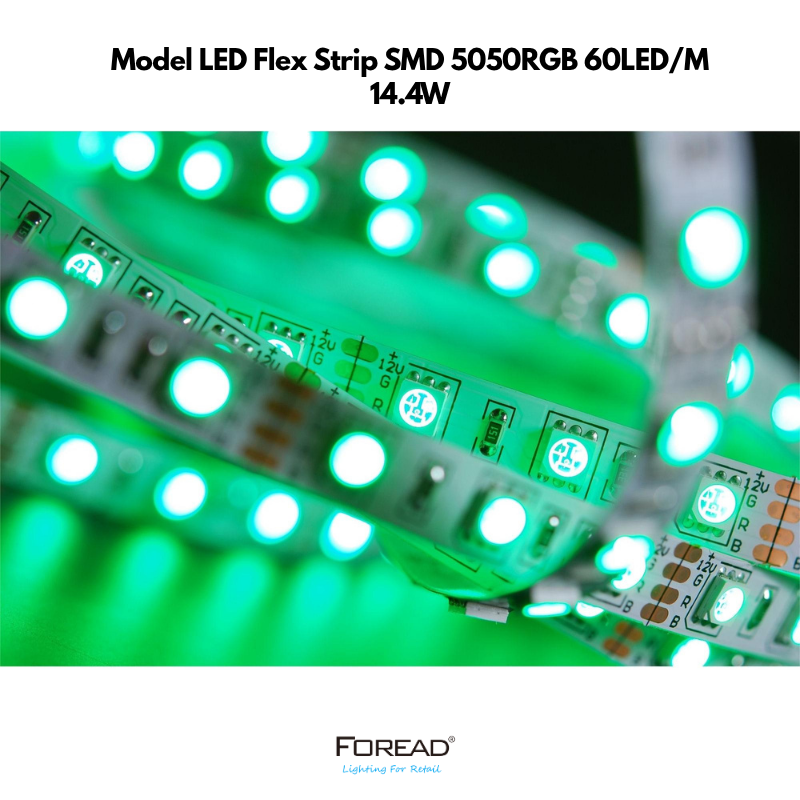

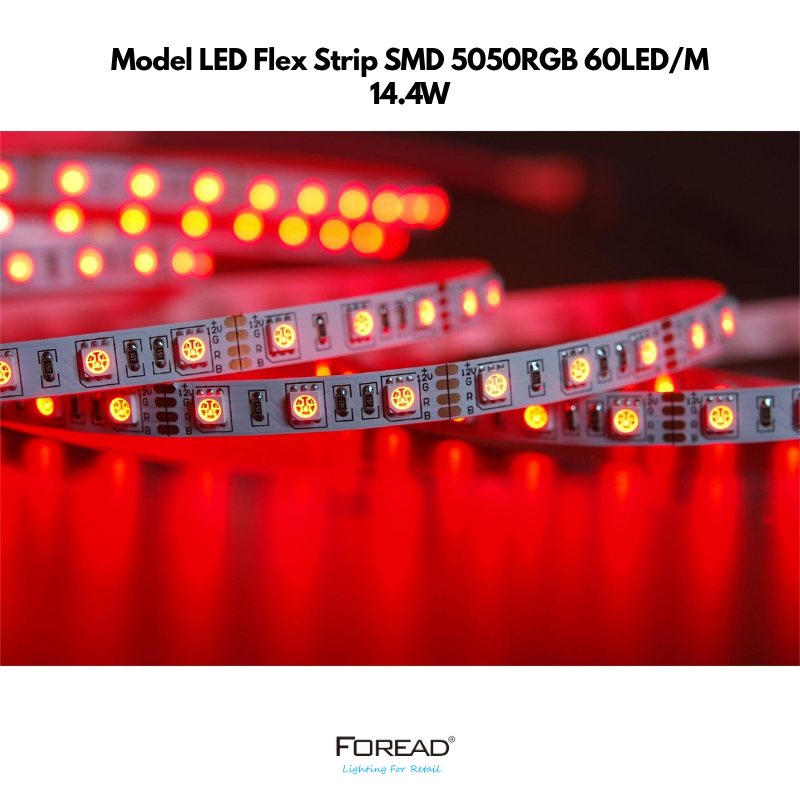

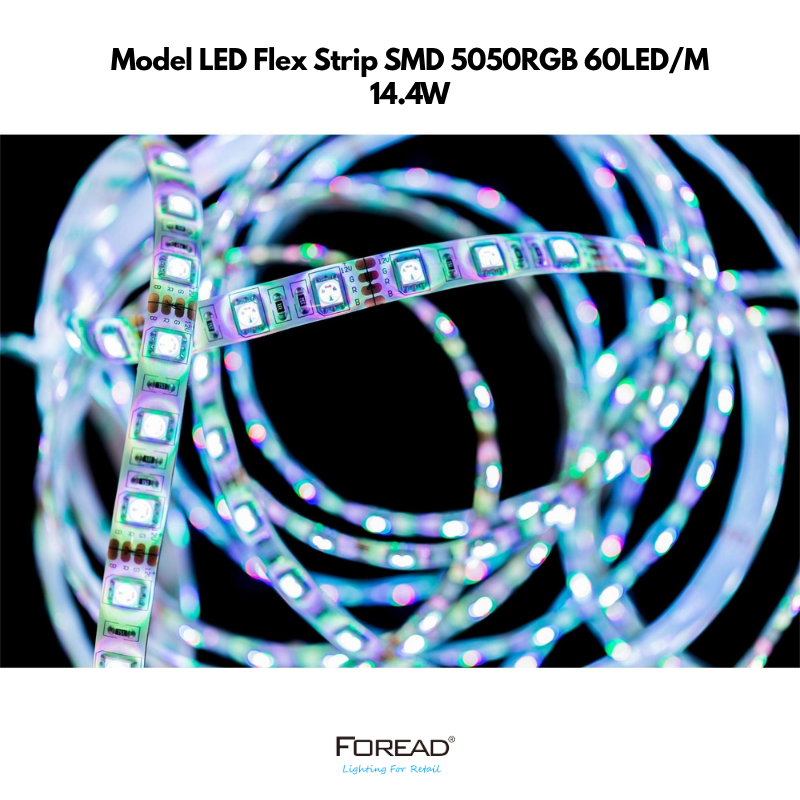

Technical Data | Model LED Flex Strip SMD 5050RGB 60LED/M 14.4W(1 meter)

Part Number	Color	Wavelength (nm)	Lum. Flux (lm)	Radiance Angle(°)	Number of LEDs	Working Voltage (V DC)	Current (A)	Power (W)	Protection level
5050RGB-60-24VW	Red	623 ± 5	120	120	60	24	0.2	4.8	IP67
5050RGB-60-24VW	Green	520 ± 5	300	120	60	24	0.2	4.8	IP67
5050RGB-60-24VW	Blue	465 ± 5	70	120	60	24	0.2	4.8	IP67
5050RGB-60-24VF	Red	623 ± 5	120	120	60	24	0.2	4.8	IP20
5050RGB-60-24VF	Green	520 ± 5	300	120	60	24	0.2	4.8	IP20
5050RGB-60-24VF	Blue	465 ± 5	70	120	60	24	0.2	4.8	IP20

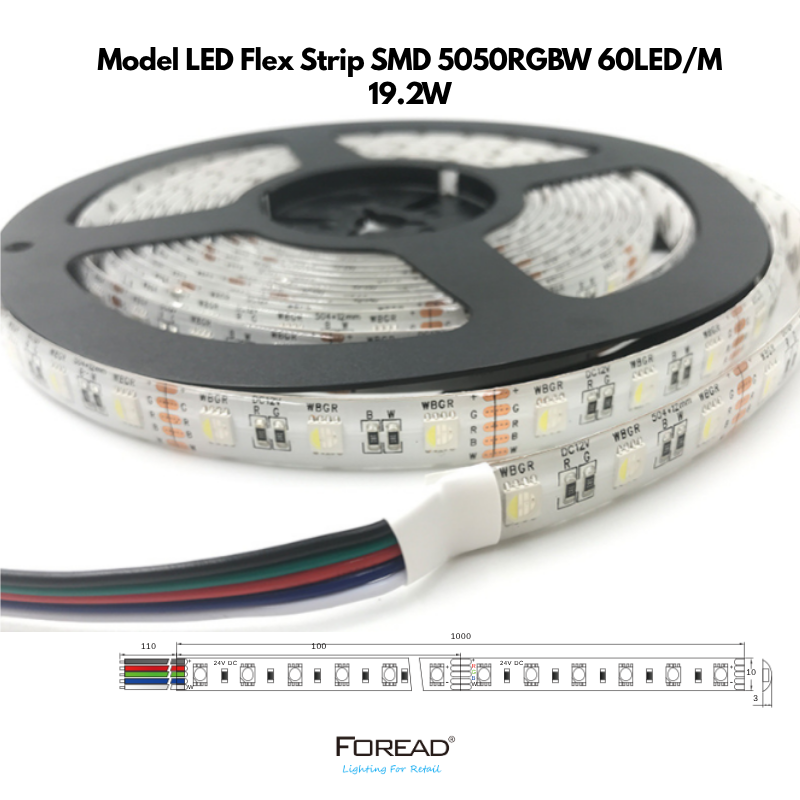

Technical Data | Model LED Flex Strip SMD 5050RGBW 60LED/M 19.2W(1 meter)

Part Number	Color	Wavelength (nm)	Lum. Flux (lm)	Radiance Angle(°)	Number of LEDs	Working Voltage (V DC)	Current (A)	Power (W)	Protection level
5050RGBW-60-24VW	Red	623±5 nm	120	120	60	24	0.2	4.8	IP67
5050RGBW-60-24VW	Green	520±5 nm	300	120	60	24	0.2	4.8	IP67
5050RGBW-60-24VW	Blue	465±5 nm	70	120	60	24	0.2	4.8	IP67
5050RGBW-60-24VW	Warm White	3000±150 K	360	120	60	24	0.2	4.8	IP67
5050RGBW-60-24VF	Red	623±5 nm	120	120	60	24	0.2	4.8	IP20
5050RGBW-60-24VF	Green	520±5 nm	300	120	60	24	0.2	4.8	IP20
5050RGBW-60-24VF	Blue	465±5 nm	70	120	60	24	0.2	4.8	IP20
5050RGBW-60-24VF	Warm White	3000±150 K	360	120	60	24	0.2	4.8	IP20

Product Features | 5050 RGBW LED Strip

▸

4-in-1 5050 RGBW integrated chip, independent warm white channel for both color decoration and main lighting

▸

Rich RGB dynamic color modes plus pure warm white light, switch freely between ambiance and daily illumination

▸

24V low voltage DC power supply, low heat output, flicker-free stable light for long continuous operation

▸

Soft bendable FPC circuit, cuttable per LED segment, easy installation for curved and irregular surfaces

▸

Two protection grades available: IP20 bare PCB for indoor, IP67 silicone coating for damp & outdoor scenes

▸

120° wide light beam, uniform coverage without shadow, perfect for dual-purpose decorative & functional lighting

Wide Applications | 5050 RGBW LED Strip

▸

Home interior: TV backdrop, ceiling cove, wardrobe & cabinet dual-mode decorative + daily lighting

▸

Commercial venues: bar, restaurant, KTV, retail shop window mixed color and warm white display

▸

Signage & light box: colorful gradient backlight plus white supplementary lighting for brand logos

▸

Building & landscape: facade outline lighting, villa courtyard colorful decorative lighting

▸

Events & exhibition: booth atmosphere lighting, stage auxiliary multi-color + warm fill light
