MEANWELL AC-DC Enclosed | LRS&RS Series

Features

Withstand 300VAC surge input: 5 sec duration.
1U low profile: 30~41mm height.
Vibration resistance: Withstand 5G vibration test.
Operating temperature: Up to 70°C.
Protections: Short circuit / Overload / Over voltage / Over temp. (LRS-150~1200).
Cooling method: Free air convection (LRS-35~200).
Peak power: Up to 200% (LRS-100N2/200N2/350N2/600N2).
Forced cooling: Built-in DC fan (350~600W).
Operating altitude: Up to 5000 meters.
MTBF: 1500k~3300k hrs (all series).
Indicator: LED for power on status.
Warranty: 3 years standard.

Share This Items :

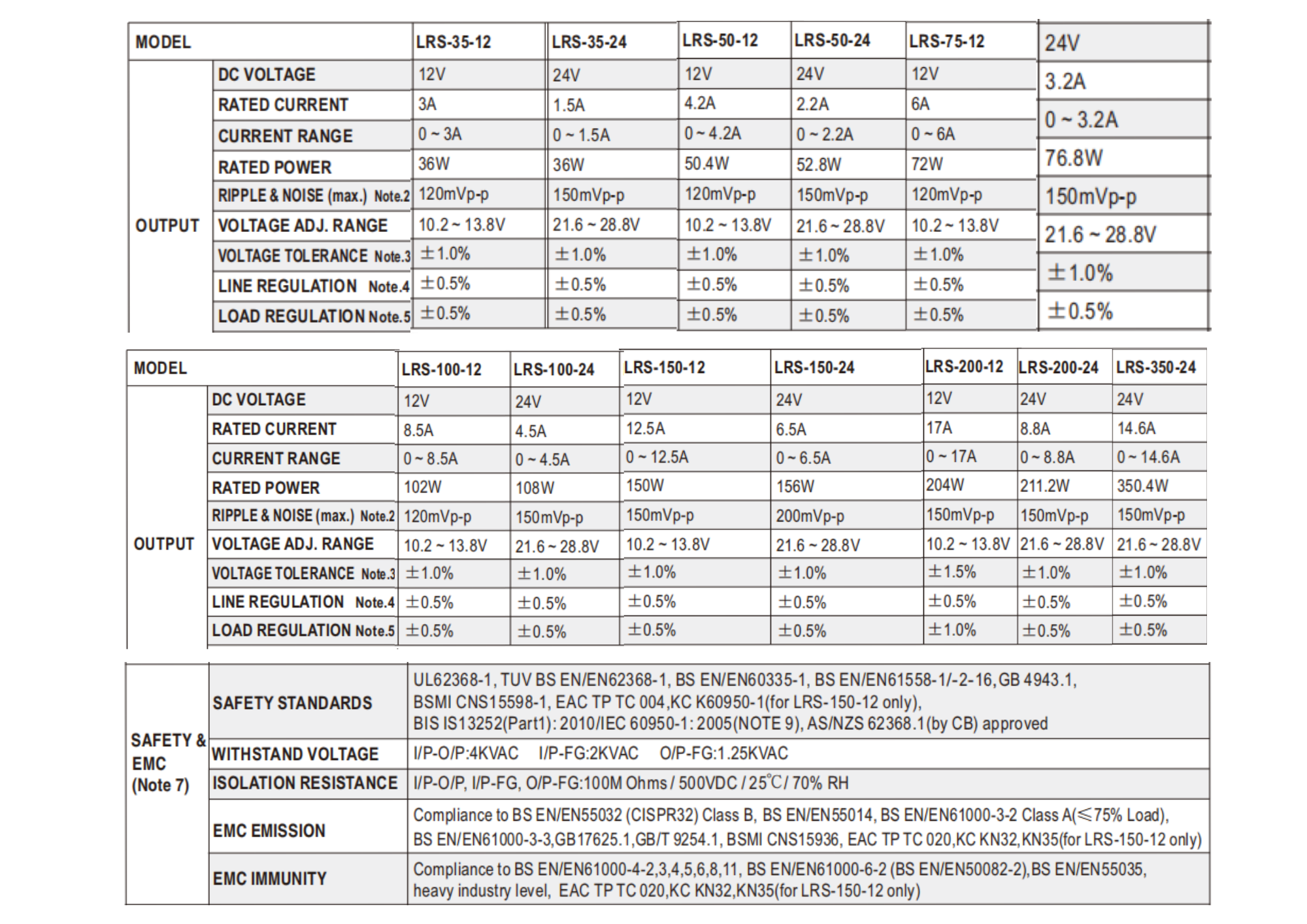

LRS 100 SPEC (1)
