LED FLEX STRIP |Food Display LED Strips

Product Detail

Product Features

▸

High CRI (>90) — makes food look fresh and appetizing

▸

Special color rendering — ideal for meat, bakery, produce

▸

Low heat emission — safe for refrigerated displays

▸

Easy installation — peel and stick

CONTACT

Share This Items :

Technical Parameters | Model Food Display SMD 3528 192LED/M 22W (1 meter)

Model No.	Color Temp (K)	Wavelength (nm)	Lum. Flux (lm)	Number of LEDs	Voltage (V DC)	Power (W)	Current (A)	Radiance Angle(°)	CRI	Operation Temp	Protection level
3528UWx-192-24VW-M	Pink (for meat)	2000±100K	1980lm	192	24	22	0.91	120	RA>90	-30~+60℃	IP65
3528UWx-192-24VF-M	Amber (for bread)	2300±100K	2200lm	192	24	22	0.91	120	RA>90	-30~+60℃	IP65
3528UWx-192-24VW-W	White (for vegetable)	2600±100K	2400lm	192	24	22	0.91	120	RA>90	-30~+60℃	IP65

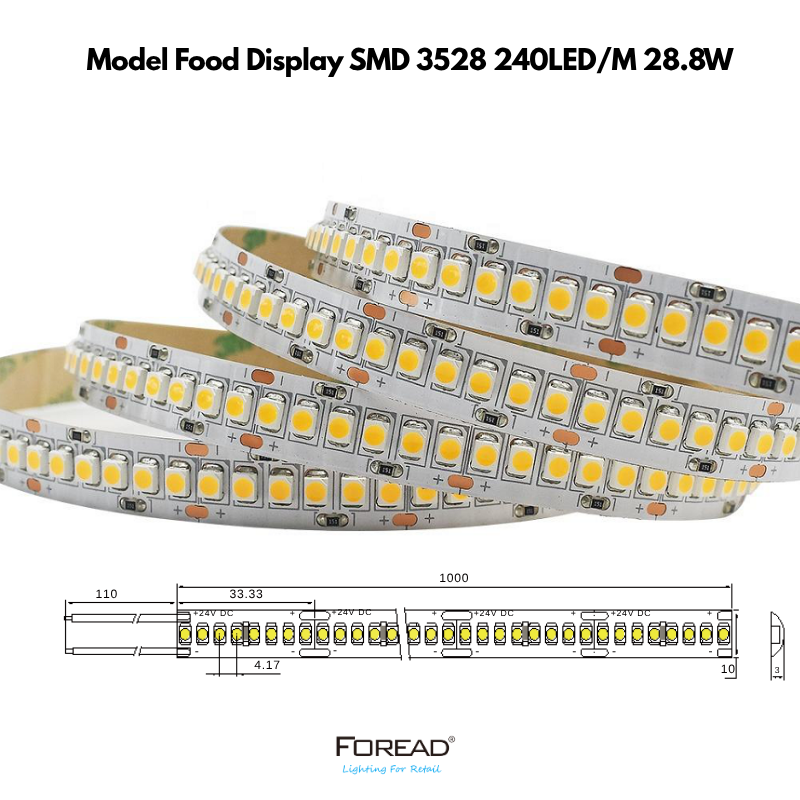

Technical Parameters | Model Food Display SMD 3528 240LED/M 28.8W (1 meter)

Model No.	Color Temp (K)	Wavelength (nm)	Lum. Flux (lm)	Number of LEDs	Voltage (V DC)	Power (W)	Current (A)	Radiance Angle(°)	CRI	Operation Temp	Protection level
3528UW-240-24VW-M	Pink (for meat)	2000±100K	2380	240	24	28.8	1.2	120	RA>90	-30~+60℃	IP65
3528UW-240-24VW-B	Amber (for bread)	2300±100K	2660	240	24	28.8	1.2	120	RA>90	-30~+60℃	IP65
3528UW-240-24VW-V	White (for vegetable)	5500±200K	2800	240	24	28.8	1.2	120	RA>90	-30~+60℃	IP65

Professional Food Lighting Performance

▸

Custom spectrum options: meat red tone, fruit warm tone, bakery golden tone

▸

Constant current drive, uniform light without flicker, protect food color

▸

Wide 120° beam angle, cover full shelf without dark shadow

▸

Stable light output long-term use

Application & Electrical Specifications

▸

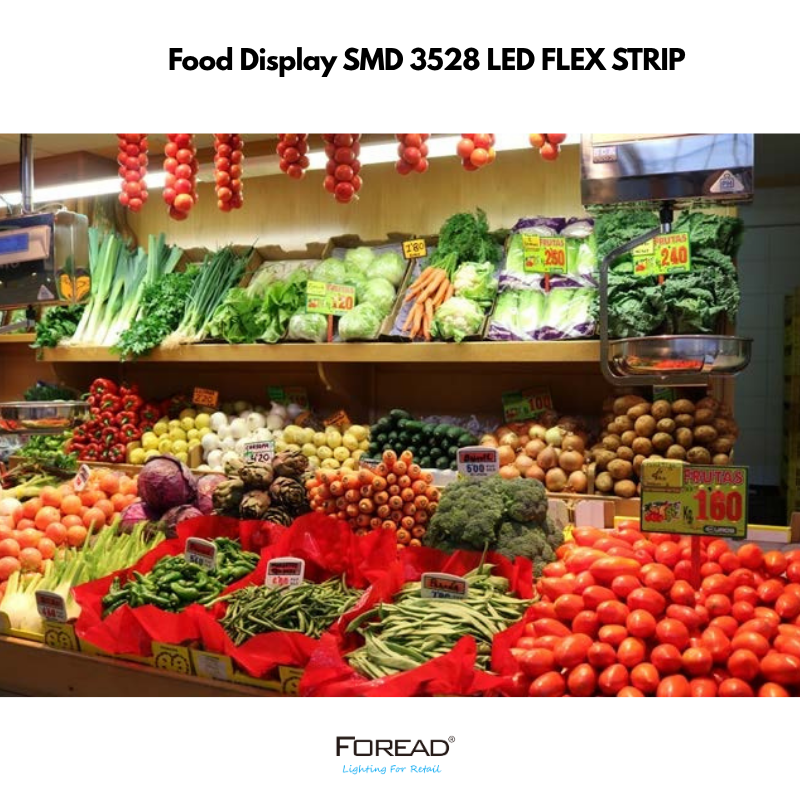

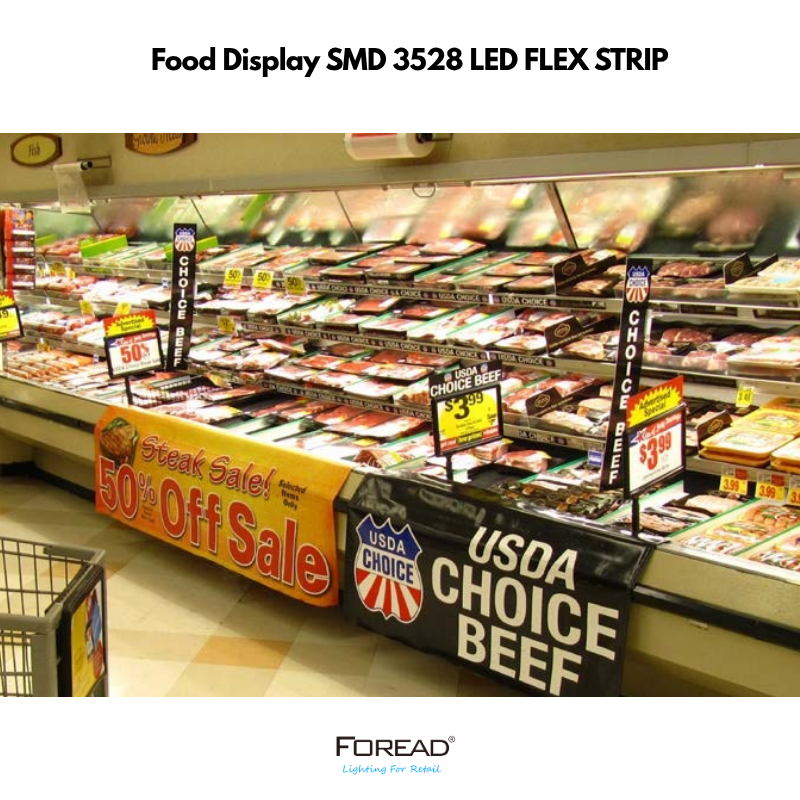

Applicable scene: supermarket cold cabinet, deli counter, fruit & vegetable shelf

▸

Low voltage DC24V safe design, no electric shock risk in wet refrigeration environment

▸

IP65 waterproof rating optional, adapt to humid refrigerated environment

▸

Cuttable every unit, flexible bendable for irregular shelf layout

Systematic service system

Professional supply chain and complete service system

Professional Lighting Design

R&D team technical support

Exquisite R&D and manufacturing capabilities

Fifteen years of industry R&D and manufacturing experience
